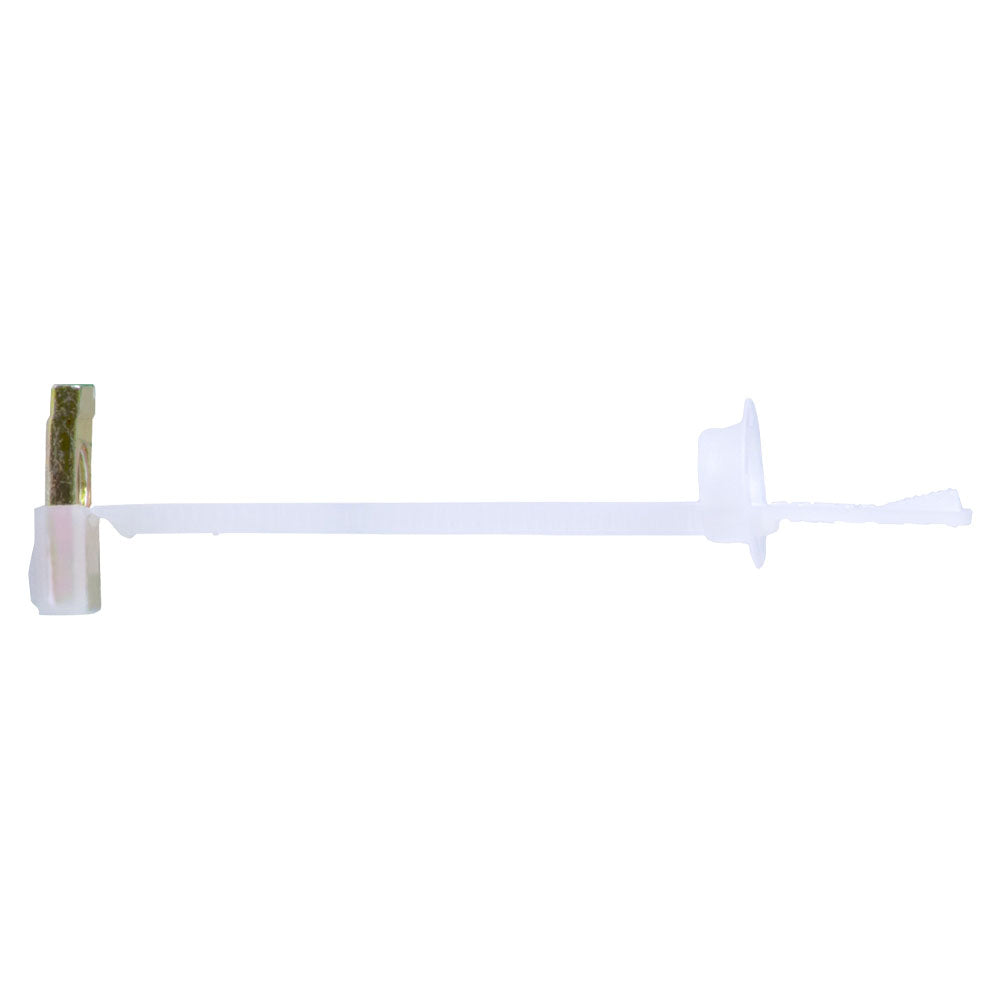

Mechanut 3 minutes (W3/8) 1 piece

POINT Large plate nut that supports on one surface

POINT 2Compatible with hollow building materials with thicknesses of 10 to 65 mm

POINT 3 Commercially available 3-minute bolts and flanged standpipes can be used. *The bolt length for flanged standpipes must be at least the plate thickness + 5 mm.

Usage notes

●Never use on gypsum board or ceilings.
● Always use a drill of the appropriate size for the pilot hole.
●Please be careful not to tighten the nut too much on ALC, siding, etc. as this may destroy or cave in the surrounding area.
● Always wear safety glasses and other protective equipment when carrying out installation.

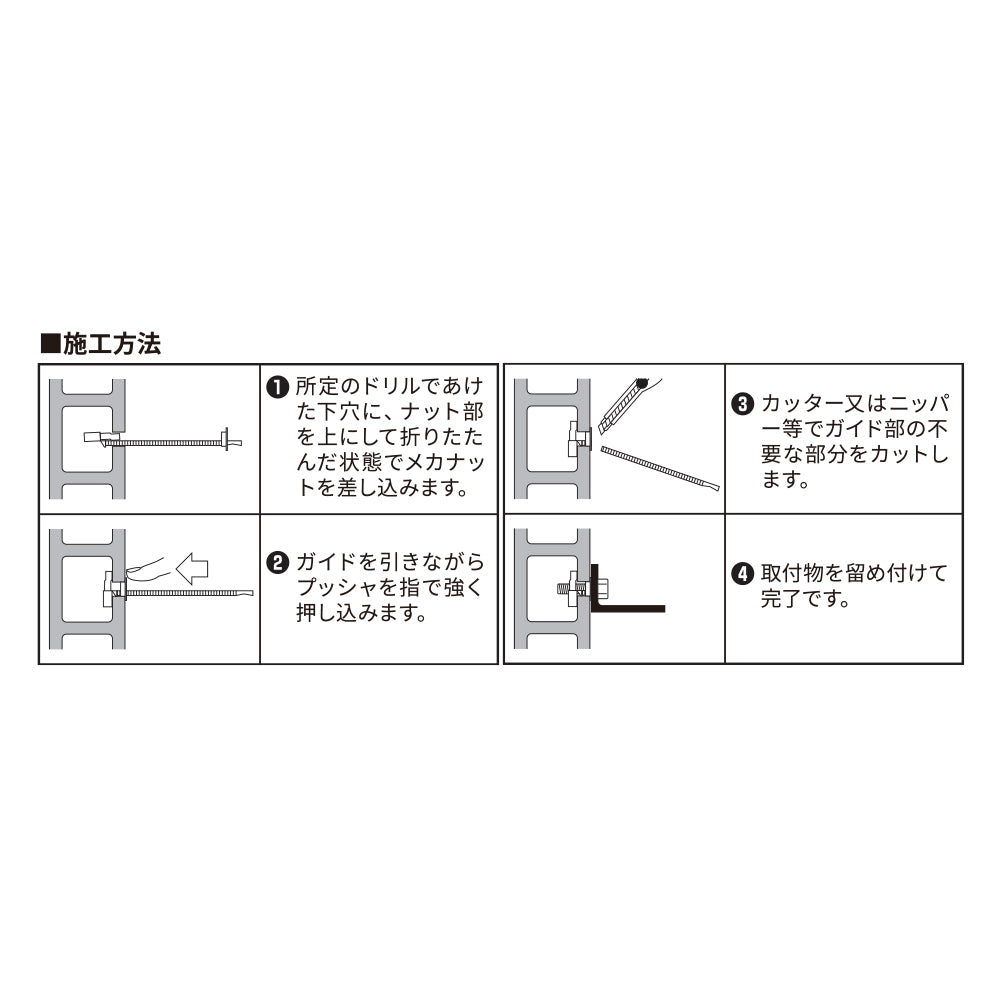

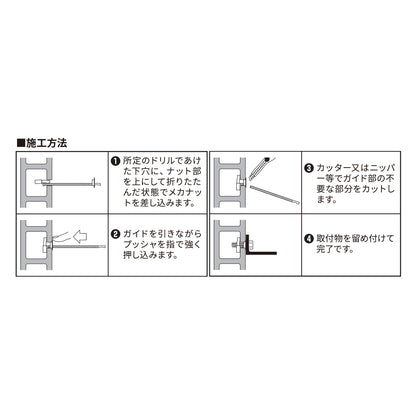

Usage

・If this product is used on the edge of hollow building materials such as extruded cement boards, it may cause the board to crack. In particular, do not use it within 100 mm from the edge.
- If you press the mounting bolt too hard, the nut may fall off.
- Please use within the range of applicable plate thickness.
- If stainless steel products are forcibly installed when the fit with the nut is misaligned, such as by screwing in a bolt at an angle, it may cause seizure and make it impossible to install.
