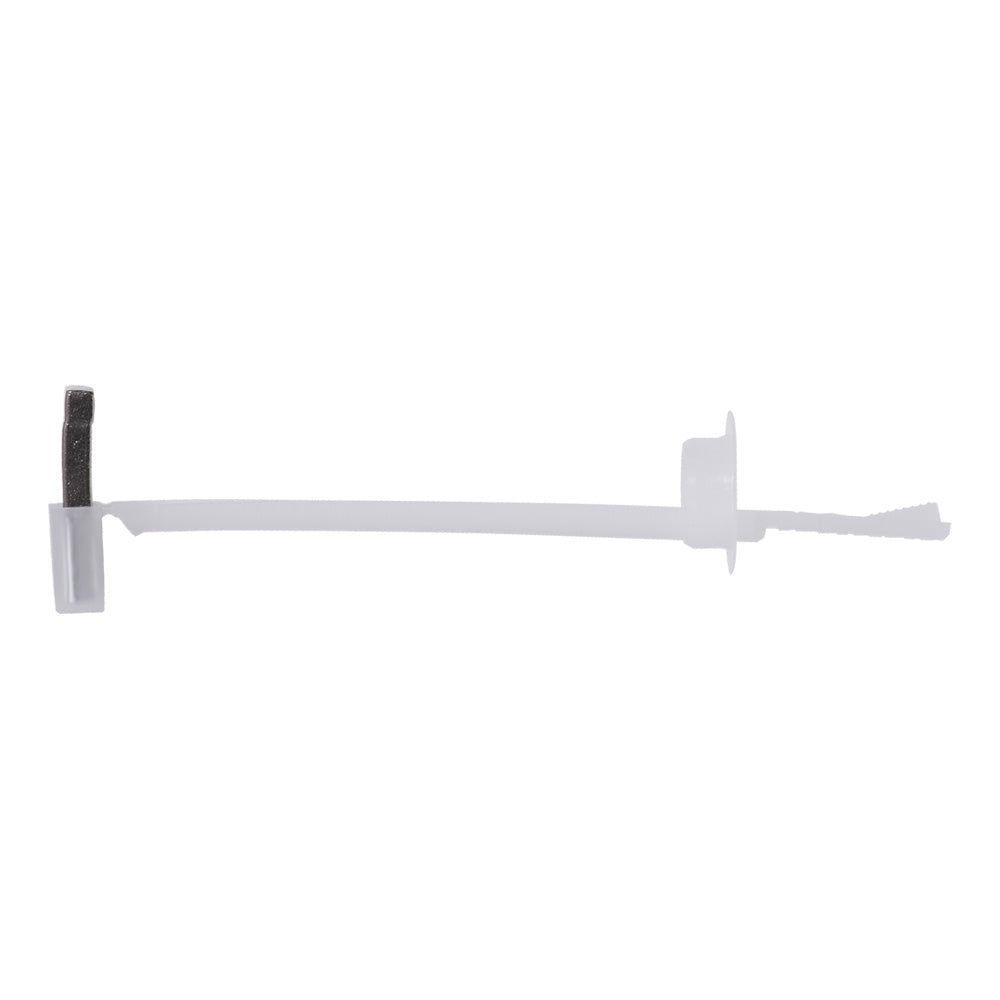

1 mechanical nut

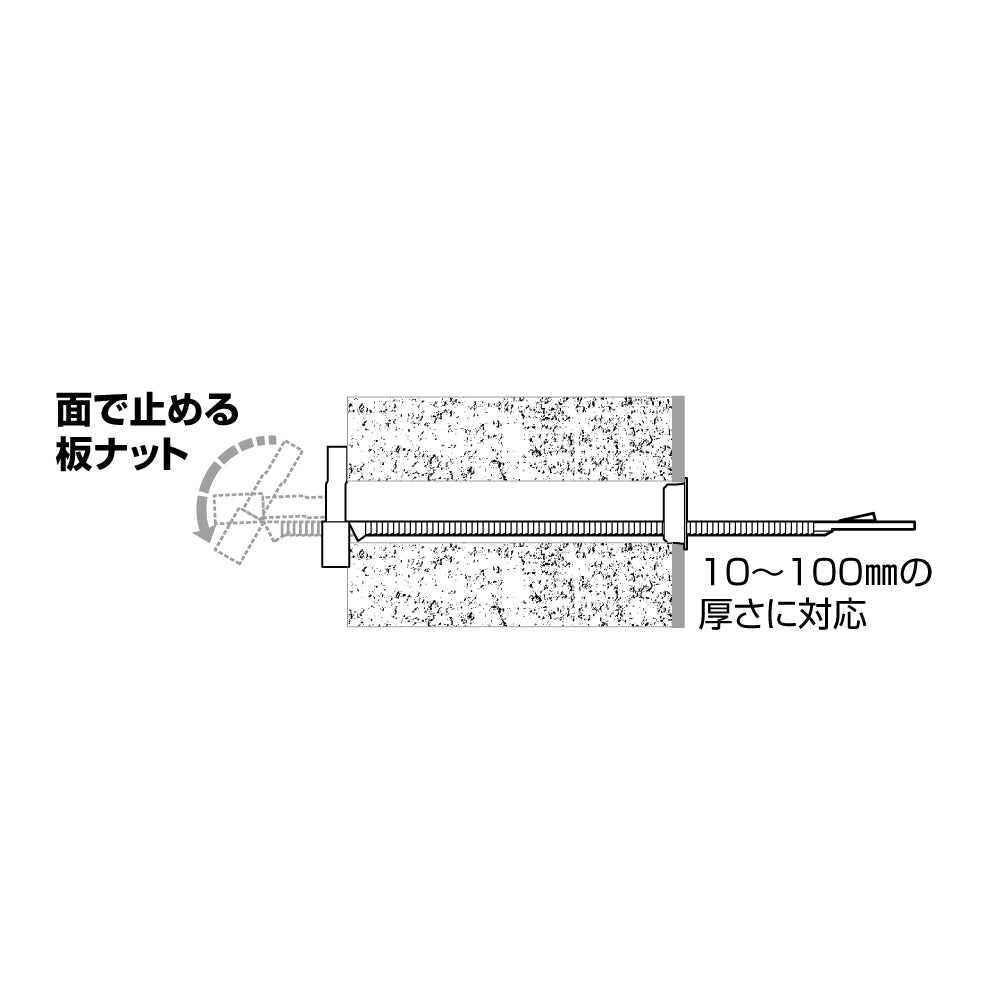

The nut surface goes into the underside of the floor and is hollow, so it does not cut into the wall or flooring material and is resistant to rattle.

POINT 1No special tools are required (no crimping tools required)

POINT 2The nut fits on the back side of the plate

POINT 3 Strong fastening with plate nuts

Purpose

■For louvers and pergolas ■For wall-mounted hand washing basins ■For storage units

Usage notes

●Never use on gypsum board or ceilings.
● Always use a drill of the appropriate size for the pilot hole.
●Please be careful not to tighten the nut too much on ALC, siding, etc. as this may destroy or cave in the surrounding area.
● Always wear safety glasses and other protective equipment when carrying out installation.

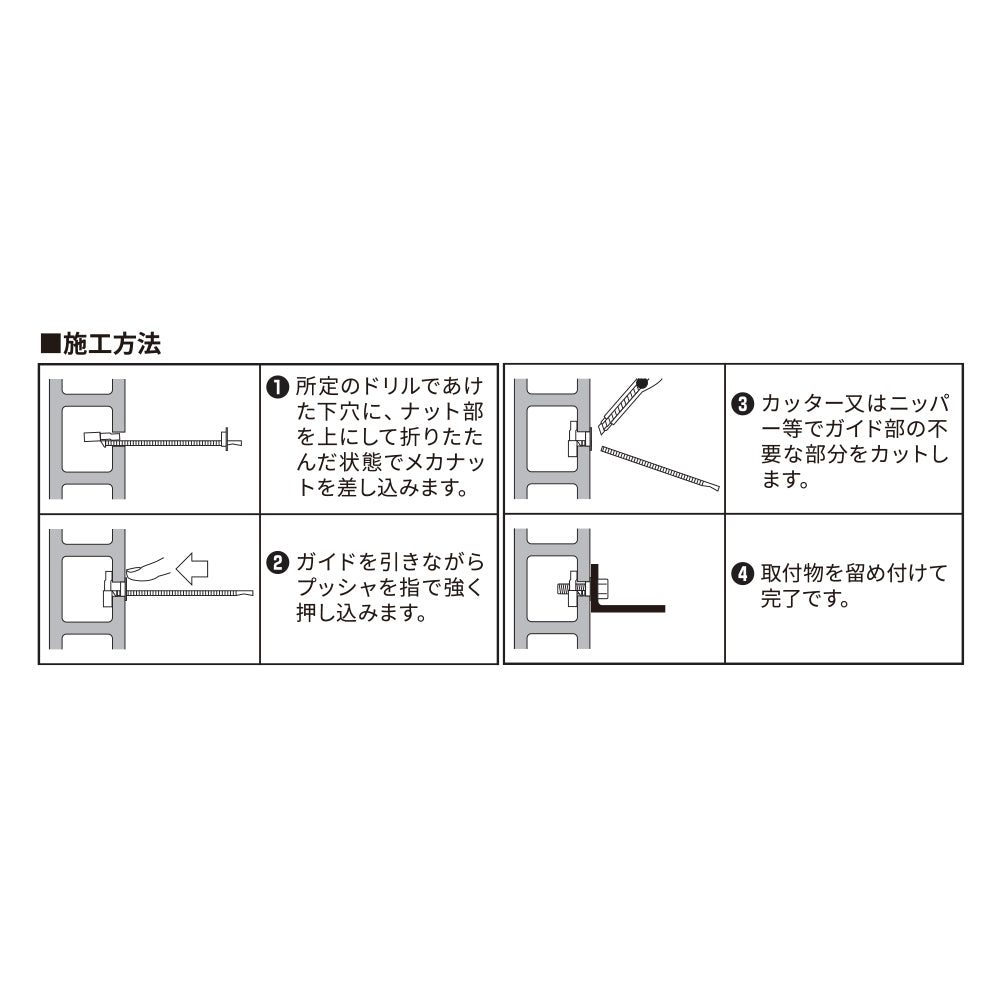

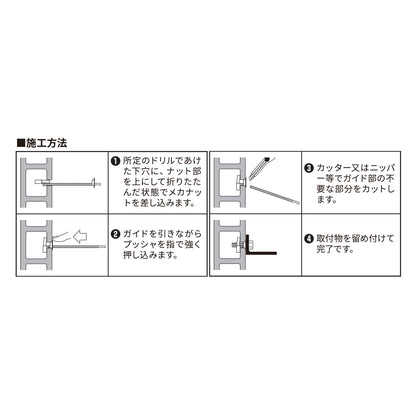

Usage

・If this product is used on the edge of hollow building materials such as extruded cement boards, it may cause the board to crack. In particular, do not use it within 100 mm from the edge.
- If you press the mounting bolt too hard, the nut may fall off.
- Please use within the range of applicable plate thickness.
- If stainless steel products are forcibly installed when the fit with the nut is misaligned, such as by screwing in a bolt at an angle, it may cause seizure and make it impossible to install.

View product catalogue
